Sekar Sprayer

The presence of the sprayer drone is to facilitate and manage the agricultural land in terms of spraying fertilizers and pesticides with a shorter time compared to circumnavigating the land that was previously done manually which can take hours or even days.

SPRAYER DRONE FEATURES

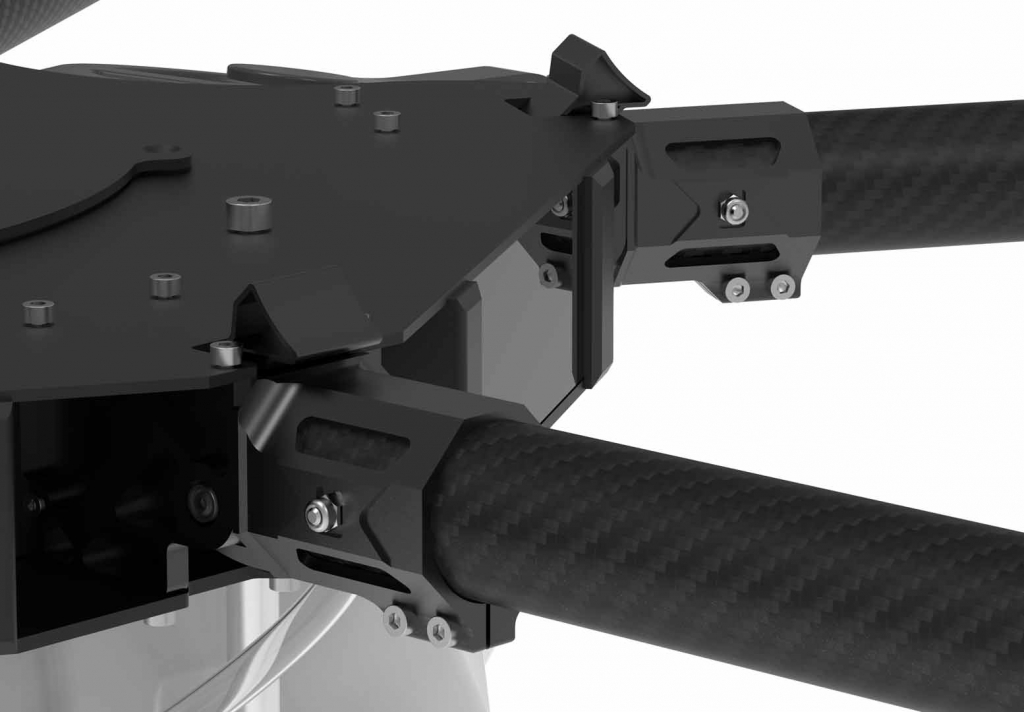

New Material

Supported by carbon fiber material with closed circuit structure, waterproof and easy maintenance.

Large Payload

Spraying more land with large tanks with capacity up to 20 liters in one flight.

Powerfull Engine

Ready to fly in a short time and the drone can be folded up for storage.

Powerfull Spray

Spray distance up to 5 meters and spraying coverage of 3 hectares/hour.

PAYLOAD & BATTERY

Net Weight: 12 kg

Max Take-Off Weight: 28 kg

Liquid Load: 10

Liter Battery: 12 Cell Lithium Polymer

Capacity: 22000 mAh

Charger: 12x Dual Charger 220VAC

Charging Time: 30 – 40 minutes

LONG RANGE & DIMENSION

Flight Time: 10 – 20 minutes

Recommended Flight Speed: 6 m/s

Max Flight Speed: 10 m/s

Operation Temperature: 0 – 40°C

Efficiency: 3 – 5 ha/hour

Spray Width: 3 – 6 m

Water Spray Flow Rate: 2.2 L/min, adjustable

Terrain Radar: 1 – 20 m

Avoidance Radar: 1 – 20 m

Obstacle Use Condition Speed: < 6 m/s

Radio Link Range: Up to 7 km

Unfold Dimension:  1.3 m x 1.3 m x 0.45 m

Assembly Type: Foldable

Dimension: 0.6 m x 0.6 m x 0.51 m

Number of Rotors: 6

FPV Camera: HD 120°

Lamp: 1000 Lux

OTHER SPECIFICATION

Propeller Material: ABS Plastic

Nozzle: 2 pcs

Nozzle Type: Centrifugal / *Jet Nozzle

Water Flow Sensor: Yes

Sensor: 2 Ultrasonic Range Finder

GPS Navigation: Yes

Remote Controle: T10

Autonomous: Android

In The Box:

  • Ready to fly a drone
  • Remote Control
  • Manual Book

Warranty:

  • FCU System 12 months
  • FPV, RC, ESC, Motor, Battery, Charger 6 months
  • Terrain Radar, Liquid Sensor, Pump 3 months
